Huaheng three-dimensional warehouse equipment-stacker cranes
Stacker is the main machine in the complete set of equipments of three-dimensional warehouse, which is used in conjunction with high-level shelves, access platforms and access systems, and is a kind of lifting machine moving on the guide rail, which can realize walking, lifting, side-to-side telescoping in the three-dimensional space and repeat movement in a certain order combination, in order to complete the in-and-out handling operation of the assembled units or picking goods.

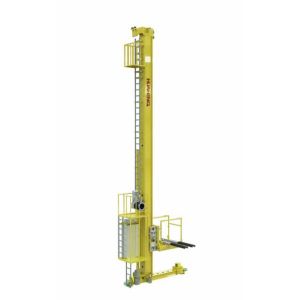

stacker cranes of HUAHENG can be classified by type into: large stacker cranes, single column stacker cranes, box type stacker cranes, double column aisle stacker cranes, all of which are combined with domestic and foreign automated warehouse know-how and are characterized by remarkable features:
1. the whole machine has compact structure, light weight, good stability, and gives full consideration to the requirements of ergonomics;
2. adopting high rigidity thin forks, which can maximize the utilization rate of warehouse space;
3. the columns are made of rectangular tubes or combined with I-beams and steel plates to form rectangular surfaces, with alloy steel cold-drawn flat steel as guide rails;
4. the frame structure all adopt robot welding and high strength bolt joint, high torsional rigidity, good wear resistance of guide rail and better straightness, parallelism and symmetry and other advantages;
5. each organization is reliable and practical, good generality of parts and components, easy to adjust and maintain;
6. adopts frequency conversion speed control, bar code or laser distance measurement and address recognition, with good speed control performance and high stopping accuracy;
7. the electrical control mode has manual, single machine automatic, on-line automatic control, which can be chosen by users at will;
8. the use of safety sliding contact line to connect the transmission device power supply, safe and reliable;
9. the safety protection device is reliable and complete, among which the safety clamp system is the first one in China.

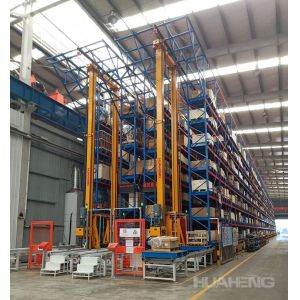

stacker cranes of HUAHENG can be applied in various fields such as medicine, machinery, flexible line, storage and transportation, home appliance, metallurgy, port, airport, commerce and high and new science and technology, etc. They can be used as warehouses for storing and moving goods, which can effectively reduce the intensity of labor, improve the utilization rate of space, reduce the cost of storage and transportation, and improve the management level of enterprises.

Changsha Huaheng Robotics System Co., Ltd. is a global engineering company under Huaheng Group, which is committed to the development, design, manufacture and service of intelligent logistics and warehousing and intelligent manufacturing flexible automated production line, and a high and new technology enterprise that provides customers with integrated solutions of intelligent logistics and intelligent manufacturing.

The company has excellent design development and engineering technology team engaged in factory automation logistics industry for many years, after continuous independent research and development and innovation, the company has owned a number of patented technology certificates, the certificate covers intelligent manufacturing production line, intelligent three-dimensional warehouse, software control and so on. In the construction machinery industry for heavy industry enterprises to provide the world's leading outrigger, frame, boom, large-tonnage frame, large-tonnage boom five intelligent robot welding production line; for the world's advanced heavy industry enterprises to provide intelligent logistics large three-dimensional warehouse, marking the heavy industry oversized parts of the intelligent storage has been solved; in the pharmaceutical industry for the pharmaceutical factories to establish a multi-layer intelligent logistics sorting, picking project; in the real estate and construction industry The industry was the first to develop and implement the construction of four climbing frame intelligent robot welding production line to become the industry benchmark.
