China 1350 X 1450MM Pallet Class Single Motor Single Motor Forklift Extended Forks wholesale

1350 X 1450MM Pallet Class Single Motor Single Motor Forklift Extended Forks

Name: 1350 X 1450MM Pallet Class Single Motor Single Motor Forklift Extended Forks
Brand: HUAHENG
Price: 15000 USD

Ask Latest Price

Video Channel

Certification :ISO, CE

MOQ :1

Price :15000

Place of Origin :CHINA

Brand Name :HUAHENG

Model Number :HFTB230x70x165

Model NO. :HFTB230x70x165-1350*1450

Application :Loading, Forging

Condition :New

Warranty :1 Year

No-Load Maximum Speed :0-40m/Min

Maximum Speed at Full Load :0-30m/Min

No-Load Acceleration :1m/S^2

Full Load Acceleration :0.5m/S^2

Color :Red/Black White

Total Fork Height :576mm

Mounting Height :189mm

Fw Fork Width :186mm

Twf Fork Width :716mm

Transport Package :Wooden Case

Trademark :HUAHENG

Origin :China

HS Code :8428909090

Production Capacity :3000

Packaging Details :Wooden box

Delivery Time :30 workdays

Payment Terms :L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now

Add to Cart

View Product Description

Hftb230X70X165-1350*1450pallet Class Single Motor Double Deep Position Highly Efficient Single-Motor Fork

Technical specialties

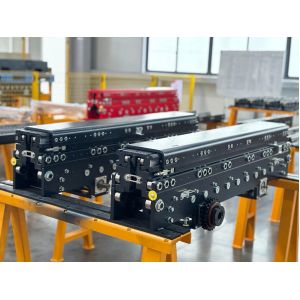

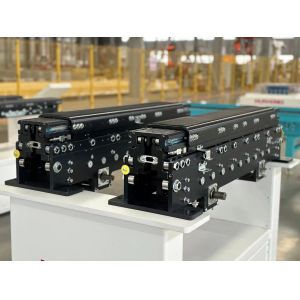

The HFTB230x70x165 series is a commonly used single-motor, double-deep fork for automated warehouse storage of standard pallet sizes from 1000mm to 1400mm.

Main components and functions:

One-piece upper fork: made of high-strength plate with integral bending processing, simple and beautiful, high strength;
High-strength needle roller bearings: customized according to the requirements of telescopic fork industry, with high precision, low resistance, strong radial bearing capacity, high hardness and self-aligning function, wear-resistant and impact-resistant;
Polymer material guide block: ultra-high polymer polyethylene, high wear-resistant, impact-resistant, with self-lubrication;
Analyzed chain: anti-stretch, high strength, high breaking load, fatigue resistance;
One-piece center fork: made of high-quality steel, machining center one-piece molding, with high precision;
Torque limiter protection: the driving part is equipped with a torque limiter, disc spring friction plate structure, overload slipping in time to disconnect the transmission;
Mechanical Limit Protection: The telescopic fork is equipped with a mechanical limit inside to prevent it from being dislodged over the stroke;
Drive: Variable frequency motor, AC servo motor with planetary reducer can be used to provide drive;
No-load maximum speed: 0-40m/min
Maximum speed at full load: 0-30m/min
No-load acceleration: 1m/S²
Full load acceleration: 0.5m/S²

1350 X 1450MM Pallet Class Single Motor Single Motor Forklift Extended Forks

FH Fork thickness (mm)	LS Cargo Length (mm)	L Fork Length (mm)	S1/S2 single/double deep stroke (safety stroke 30mm)	TH Total fork height (mm)	HC Mounting height(mm)	TWF Fork width (mm)	FW Fork width (mm)	Q Load (KG)	Single deep Load Disturbance(mm) ± 10%	Single deep No-Load Disturbance(mm) ± 10%	Dual deep Load Disturbance(mm) ± 10%	Double deep No-Load Disturbance(mm) ± 10%
80/175	1000	1200	1250+30/2350+30	552	247	>670	230	1500	16	≤5	44	≤8
	1100	1200	1300+30/2500+30					1500	16		45
	1150	1250	1350+30/2600+30					1500	16		46
	1200	1300	1400+30/2700+30					1200	16		47
	1250	1350	1450+30/2800+30					1200	17		48
	1300	1400	1500+30/2900+30					1000	17		49
	1350	1450	1550+30/3000+30					1000	17		50
	1400	1500	1600+30/3100+30					900	16	≤7	51	≤11
	1450	1550	1650+30/3200+30					800	17		52
	1500	1600	1700+30/3300+30					700	16		55
